Delta

Variable Frequency AC Drive


VFD CH2000
 Heavy Duty Series

Features

​

  • Field oriented control (FOC) with Built-in 10K steps PLC function

  • LCD keypad with Text Panels editor function

  • Control Modes: V/F, Vector, FOC+PG, FOC+PG+PM

  • Built-in Braking Chopper up to 40Hp

  • Wide range of models to fit different industries

  • Built-in high speed communication CANopen protocols and MODBUS

  • Optional communication cards: PROFIBUS DP, DeviceNet, MODBUS TCP and EtherNet/IP Cards


VFD CP2000 Series
Special for Fan, Pumps, & HVAC applications

Features



  • Sensorless Vector Control Drive with Built-in 10K steps PLC function

  • LCD keypad with Text Panels editor function

  • Control Modes : V/F, Vector

  • Built-in Braking Chopper up to 50Hp

  • Wide range of models to fit different industries

  • Built-in high speed communication BACnet MS/TP and MODBUS

  • Optional communication cards: PROFIBUS DP, DeviceNet, MODBUS TCP, CANopen and EtherNet/IP Cards.


VFD C200
Intelligent Vector Control Micro Drive

Features

​

  • Sensorless Vector Control Drive with Built-in 5K steps PLC function

  • Built-in Braking Chopper

  • Built-in pulse input terminals for encoder closed-loop control

  • Special Function: High speed Frequency output up to 2000Hz

  • Flange mounting design for Frame A and removable panel to

  • facilitate installation process

  • Built-in CAN open protocol and MODBUS RS-485 port for network connection

Variable Frequency AC Drive

download (2).jfif

VFD CT2000
Intelligent Drive for Textile Machinery

Features

​

  • High efficiency, fanless design for natural cooling

  • Flange mounting method prevents fiber and dust from clustering or entering the drive

  • Field oriented control (FOC) with 10K steps PLC programming capacity

  • Built-in CANopen communication and MODBUS protocol RS-485 port for remote control of PLC I/O extension modules via network


VFD E
High Performance/Flexible Extension Micro Type AC Motor Drive

Features



• V/F, Vector & PG Control Mode

• Built-in 500 steps PLC programing capacity

• Built-in MODBUS communication

Optional Fieldbus module & I/O cards

• Built-in EMI Filter

• Built-in RFI switch

• Built-in Braking Chopper : 230V series 2Hp~3Hp

460V series 3Hp~30Hp


VFD EL
Compact Multi-Function

Features

​

  • V/F, Vector Control Mode

  • Low Noise Carrier frequency upto 12 KHZ

  • Process Follower 0-10V DC, 4-20mA

  • 6 multifunction inputs

  • Built-in EMI Filter.

  • Built-in RS-485 Serial Interface.

  • NPN/ PNP Selection (Sink/Source)

  • PID Feedback Control

Variable Frequency AC Drive


VFD VE
Field Oriented FOC + PG control AC Drive

Features

​

  • V/F, FOC PG, SVC, Torque-PG, Position control

  • Output frequency: 0~3000 Hz.

  • Starting torque is 150% for 0.5 Hz and o Hz with FOC+PG control mode

  • Constant torque and variable torque selection

  • Maximum Torque Limit 200%

  • Built-in Braking Chopper up to 15Hp

  • Home search, Pulse command and 16 point positions control


VFD M
Senseless Vector Control Micro Drive

Features



  • V/F, Vector Control Mode

  • Output frequency 0.1- 400Hz

  • Low noise carrier frequency up to 15kHz

  • Process follower 0-10VDC, 4-20 mA

  • Communication interface RS 485

  • PID feedback control

  • Built-in Braking Chopper

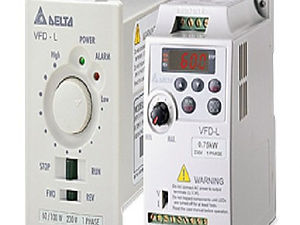

VFD L
Compact and Panel Mounted Drive

Features

  • ​

  • V/F Control Mode

  • Rated frequency range 1Hz 120Hz

  • Option: Programmable Keypad (VFD-PU02)

  • Built-in EMI Filter

  • RS-485 communication (Baud rate 9600)

Variable Frequency AC Drive


HES Series
Energy Saving for Plastic Injection Molding Machinery

Features

​

Superior Energy-Saving Outcomes : Lower energy consumption rate

at the clamping and cooling stage while maintaining high productivity and high precision 40% less energy consumption compared to variable pump hydraulic systems 60% less energy consumption compared to a traditional quantitative pump hydraulic system

​

Low Oil Temperature: Oil temperature reduced by 5-10 °C, oil. usage reduced by 50-60%, 50% less oil tank volume, lower cooler specifications required or even no cooler required

​

High Duplication Accuracy: Precise flow and pressure control featuring

duplication of products with less than 0.09% difference

​

Long Holding Pressure : Keeps mold halves securely closed for a

longer period for thick plastic products formation

​

Old Machine Replenishment : Supports analog command 0-10V

and linear correction (3 points), no replacing


VFD VL
Design for Elevator Application

Features



  • High performance field oriented control(FOC)

  • Design for Induction motor & permanent magnet synchronous motor

  • Support emergency rescue system, Supply DC 48/96V

  • 5 Point adjustable S curve, Field Oriented Control+PG, Sensorless Vector Control, PG + PM

  • Built-in braking unit up to 22kW

  • RS-485 & CANbus serial interface

  • Optional PG feedback cards (for ABZ & Heidenhain encoder)


VFD ED
Advanced Elevator Drive

Features

​​

  • Built-in LED digital keypad

  • Design for Induction motor & permanent magnet synchronous moto

  • Emergency operation is enabled using UPS

  • 5 Point adjustable S curve, Field Oriented Control+PG, Sensorless Vector Control, PG + PM

  • Built-in braking unit up to 22kW

  • RS-485 & CANbus serial interface

  • Optional PG feedback cards (for ABZ & Heidenhain encoder)

Variable Frequency AC Drive


VFD IED
Integrated Elevator Drive

Features

​

  • CONTROL

  • High-efficiency group control function capable of controlling multiple elevators without the need of additional control cards

​

  • Single and double door elevator applications, Max. 48 floors

​

  • DRIVE

  • Support asynchronous and synchronous motors (IM & PM motor)

  • Emergency power supply (EPS) function

​

  • TUNE

  • Auto-learns hoistway and auto-detects floor height

  • Auto-tunes motor parameters without load disconnection

​

  • EFFICIENCY

  • Direct stop-multi-speed control to provide a comfortable ride with higher efficiency

​

  • Full-load operation - arrives at designated floor without stopping


VFD DD
Design for Elevator Door Control Drive with Motor

Features



  • Simplified elevator door control system

  • Supports IM/PM motors (Only for Delta motor)

  • Built-in pulse input terminals for encoder closed-loop control

  • Auto-tunning for door width & Auto-positioning as power turns ON

  • Smooth door re-open/re-close curve

  • Demo mode

  • Supports elevator door obstruction detection function

​

DOOR MOTOR

Specification

  • 65W, 220V, 2.5N-m, 250RPM, 0.97Amp, Synchronous motors

WhatsApp Image 2022-05-20 at 12.59.49 PM.jpeg

Accesories

Features

​​

  • Built-in LED digital keypad

  • Design for Induction motor & permanent magnet synchronous moto

  • Emergency operation is enabled using UPS

  • 5 Point adjustable S curve, Field Oriented Control+PG, Sensorless Vector Control, PG + PM

  • Built-in braking unit up to 22kW

  • RS-485 & CANbus serial interface

  • Optional PG feedback cards (for ABZ & Heidenhain encoder)

Power Quality Solution


VFD SVG2000

Features

​

  • Compensated both leading and lagging reactive current

  • Improves power factor to 0.99

  • Power voltage rating 200V to 480V and 525V to 690V

  • Modular design of fan, power, drive, control and reactor

  • 7 inches TFT LCD 65536 full color touch screen

  • Capacity: 300kVAR/500KVAR

download (3).jfif

REG 2000
Power Regenerative Unit

Features

​​

  • Compact design with reactor included and easy to install

  • Replaces traditional brake resistor with reduced heat generation and more than 95% power regeneration efficiency

  • MODBUS 485 communication to real-time monitor kWh and cost

  • Parallel connections for large power applications

  • Option cards available*: MODBUS TCP, CANopen(DS301), PROFIBUS, DeviceNet, EtherNet/IP


AFE 2000
Active Front End Unit

Features

​​

  • Replaces traditional brake resistor to reduce heat energy

  • Clear energy savings: more than 95% of the energy is regenerate and supplied back to the mains

  • Constant DC bus voltage: unaffected by mains voltage fluctuations

Encoder


ROE ES/EH/ETA
Incremental Type Encoder

Features

  • ES Series: Solid Shaft model with outer diameter of 36.6 mm & 50 mm

  • EH Series: Hollo Shaft model with outer diameter of 36.6 mm & 50 mm

  • ET Series: Through hole Shaft model with outer diameter of 100 mm

  • Light & Compact, high reliability.

  • PD 01 Profibus/Dev Special Module of AC Drive with

  • Resolution : 100 5000 ppr

  • Output form : Open Collector, Voltage output, Line Driver & Push Pull

  • Power Voltage range: 5-24V DC

  • Responsiveness: 300 kHz max


ROS ES/EH/ETA
Absolute Type Encoder

Features

​

  • AS Series: Solid Shaft Model with outer diameter of 50 mm AH Series: Hollow Shaft Model with outer diameter of 50 mm

  • Absolute Encoder (Gray Mode)

  • Resolution : 5-10bit

  • Output Form : Voltage Output, Open Collector

  • Power Range

  • :5-12V DC

  • Responsiveness: 20 kHz max.

Programmable Logic Controllers


DVP SS2 Series
2nd Generation Standard Slim PLC (Economic and Compact PLC)

Features

​

  • MPU Points: 14 (8DI + 6 DO)

  • Max. 10 points: 494 (248DI + 24600)

  • Program capacity: Sk steps

  • Higher execution speed compared to the competition: LD: 0.35μs, MOV: 3.4us

  • Built-in with RS-232 & RS-485 ports with Modbus

  • ASCURTU protocol. Can be master or slave.

  • Support PID auto-tuning function

  • -Expandable up to 8 special Module (Analog, Temp, High speed VO)

  • Support 4-point (Yo - Y3) independent high speed pulse output with frequency up to 10 Khz -8 points of high-speed counters: 20kHz/4 points,10kHz/4 points


DVP SA2/SE Series
High Performance PLC

Features



  • MPU Points: 12 (8DI + 4 DO)

  • Max. 10 points: 492 (248DI + 244DO)

  • Program capacity: 16k steps

  • Higher execution speed compared to the competition : LD: 0.35μs, MOV: 3.4μS

  • Built-in with 1 RS-232 & 2 RS-485 ports with MODBUS

  • ASCII/RTU protocol (SA2) • Built-in mini USB, Ethernet, and 2 RS-485 ports (SE)

  • Built-in Ethernet supports MODBUS TCP and Ethernet/IP (SE)

  • Supports 8 Left/Right hand side special Modules

  • 4 points of high-speed pulse output: 100kHz/2 points,

  • 10kHz/2 points

  • 8 points of high-speed pulse input:100kHz/2 points, 10kHz/6 points, 1 set of A/B phase 50kHz

  • Supports 2-axis linear and arc interpolation


DVP SX Series

Features

​​​

  • MPU Points: 10 (4DI + 2 DO + 2AI + 2AO)

  • Max. 10 points: 256 (128DI + 128DO)

  • Program capacity: 8k steps

  • Program execution speed: 3.8 μs (Basic Instruction)

  • Built-in with RS-232 & RS-485 ports with MODBUS ASCII/RTU protocol

  • Inbuilt RTC & 2 Digital 7-segment display

  • Supports 8 special Right hand side module

  • Support 2-point (Yo,Y1) independent high speed pulse output with frequency up to 50 KHz(Yo) & 10 KHz(Y1)

  • Built-in 6-group (20/10KHz) High-speed Counter

  • (Bandwidth: 40KHz)

  • Support PID auto-tuning function

Programmable Logic Controllers


DVP SX2 Series
2nd Generation Slim Mixed-analog MPU

Features

​

  • MPU Points: 20 (8DI + 6DO + 4AI + 2AO)

  • Max. 10 points: 494 (248DI+ 246DO)

  • Program capacity: 16k steps

  • Higher execution speed compared to the competition :

  • LD: 0.35 s, MOV: 3.4 S

  • Built-in mini USB, RS-232 and RS-485 ports (Master/Slave)

  • Supports 8 Left/Right hand side special Modules

  • 4 points of high-speed pulse output: 100kHz/2 points,10kHz/2 points

  • 8 points of high-speed pulse input:100kHz/2 points,

  • 20kHz/6 points, 1 set of A/B phase 50kHz

  • USB for program upload/download


DVP EH3 Series
High Performance PLC

Features



  • MPU Points: 16/20/32/40/48/64/80-0

  • Max. 10 points: 512 (256DI + 256DO)

  • Built-in with RS-232 & RS-485 ports with MODBUS ASCII/RTU protocol

  • Support 2-axis linear/arc interpolation & inbuilt RTC

  • L type Supports left-side modules. 16/20 points MPU supports 2 point (Xo/X1) and (X4/X5) with 200KHz and other MPU supports (Xo/X1), (X4/X5), (X10/X11) and (X14/X15)

  • 16/20/32 points(T) supports 2 point 200KHZ PTO (Yo) and (Y2) and other MPU supports 4 point 200KHZ (Yo/Y1), (Y2/Y3). (Y4), and (Y6) 16 External Interrupt

  • Auto backup function to prevent the loss of programs and data even when the battery runs out

  • Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged


DVP ES2/EX2 Series

Features

​​​

  • ES2 MPU Points: 16/20/24/32/40/60

  • EX2 MPU Points: 20 (8DI + 6DO + 4AI + 2AO)

  • Max. 10 points: 272 (256 DI + 16 DO or 16 DI + 256 DO)

  • Program capacity: 16k steps

  • Program execution speed: 0.54 us (Basic Instruction)

  • Built-in with 1 RS-232 & 2 RS-485 ports with MODBUS ASCII/RTU protocol. Can be master or slave.

  • Inbuilt RTC & Support PLC link (Max.921 kbps)

  • Expandable up to 8 special Module (Analog, Temp, High speed 1/0)

  • Support 2-point (Yo,Y2) of 100 KHz and 2 points (Y1,Y3) of 10 KHz high speed pulse output

  • Built-in 8 points HSC (2/6 points 100kHZ/10KHz)

Programmable Logic Controllers


DVP PM Series
(DVP20PM00D/M)
Professional Motion Control MPU

Features

​

  • MPU Points: 16 (20PMooD-2axis) (20PM00M-3axis)

  • Max. 10 points: 512 (256 DI + 256 DO)

  • Program capacity: 64k steps

  • Built-in with RS-232 & RS-485 ports Compatible with G-code & M-code

  • DVP20PM00D: 2-axis linear/arc interpolation

  • DVP20PM00M: 3-axis linear/arc/helical interpolation Expandable up to 8 special module & function

  • card (CANopen/Ethernet)

  • Built in 2-group differential pulse output-500Khz Compatible with extension module of Eh2 series MPU.

  • G-Code download by PMGDL software/ HMI-DOP-B07PS415

  • Able to define 3 cams (2048 points) with different types of smooth curves

  • Cyclic E-CAM & Acyclic E-CAM

​

Application Area

​

  • Flow Wrap, BOPP, Rotary cutter, Flying shear & other CAM controls

  • All types of grinding machine-Pick & Place, Auto Lathe, Engraving machine, Wire Cutting machine and other M/c tool application


DVP SV2 Series
High Performance Slim Series MPU

Features

​

  • MPU Points: 28 (16DI + 12DO)

  • Max. 10 points: 512 (256DI + 256DO)

  • Built-in with RS-232 & RS-485 ports with MODBUS ASCII/RTU protocol • Support 2-axis linear/arc interpolation & inbuilt RTC

  • Support 2 points PTO (Yo, Y2) (Y2, Y3) of 200 KHZ & 2 points (Y4. Y6) of 200 Khz Supports 2 points HSC 200KHz: XXo/X1), (X4/XS) & 2 points 20KHZ (X10) and

  • (X14) 200KHz 16 External Interrupts Auto backup function to prevent the loss of programs and data even when the battery runs out

  • Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

  • Supports DVP-S series left-side and right-side modules. Add new ETHRW instruction for Ethernet communication

Human Machine Interface (HMI/MMI)


TP 02 // 04
Simple 2-line/4-line Display Text Panel

Features

​

  • STN LCD size: 72 x 22 mm (TPo2), 3"(TP04G-AS2) & 4.1" (TP04-AL2)

  • Resolution: 160 x 32 dots (TPoz), 128 x 64 dots

  • (TP04G-AS2) & 192 x 64 dots (TPo4G-AL2)

  • Built in 256 KB flash memory 16 User-Defined keys (TPo2 series)

  • 12 User-Defined keys (TP04G-AS2 series)

  • 9 User-Defined keys (TPo4G-AL2 series)

  • 2 Communication port: TPo2: COM1: RS232, COM2:Rs485, TP04G-AS2: COM1: RS232/RS422, COM2:Rs485 TP04G-AL2: COM1: RS232, COM2:RS485/RS422

  • Back light auto turnoff settings

  • Built in RTC & Password function


TP 04P-16TP1R/32TP1R
4 Line Text Panel PLC

Features



  • Adopts core of SS2 series PLC with program of 8K steps and D devices of 5K words

  • Provides 2 sets of 10kHz high speed pulse input

  • 4.1" STN-LCD, Monochrome Display & 192 x 64 pixels

  • Provides 17 function keys & 0-9 numeric keys with user defined function

  • Built-in USB port for program upload/download • Built-in 2 sets of RS-485 communication port

  • Supports MODBUS ASCII/RTU modes

  • User-defined boot screen available

  • Built-in real-time clock (RTC)

  • Digital 1/0 points available(8D1/8D0 or 16DI/16DO)


TP 08
Multifunction 5-line/8-line Text Panel

Features

​​​

  • STN LCD size: 3.8"

  • Resolution: 240 x 128 dots (TPo8 series)

  • Built in 1024 KB flash memory • 24 keys user-defined keys

  • 2 Communication port: COM1: RS232

  • COM2: RS485/422

  • Back light auto turnoff settings

  • Built in RTC & Password function

  • Support Recipe & Macro function

Human Machine Interface (HMI/MMI)


DOP BS
High Color & Wide Screen Panel

Features

​

  • LCD Size: 4.3", 5.6", 7.0" & 10.1" Display color: TFT LCD (65536 Colors)

  • Resolution: 4.3" (480 x 272 pixels) Resolution: 5.6" (320 x 234 pixels)

  • Resolution: 7.0" (800 x 480 pixels)

  • Resolution: 10.1" (1024 x 600 pixels)

  • Backlight: LED

  • Flash ROM: 8 MB(35210) & 128MB (35211. 5.6", 7.0" & 10.1"

  • Support USB host for Printer, Mouse & Flash drive

  • (Except 35210)

  • Support SD card (75415 & 105415) Support USB client for high speed upload and download

  • COM1: RS232/485 (3S211) RS232/485/422 (35210) RS232 (5.6", 7.0" & 10.1")

  • COM2: RS485/422 (35211) & N.A (3S210) & RS232/485 (55211 & 75411) & RS232/485/422(7S415" & 10.1")

  •  COM3: RS485/422 (55111 & 75411) & RS232/485/422 (75415 & 10.1")

  • 4 User defined key & 4 System key

  • Support Horizontal & Vertical Display


DOP BE
High Resolution Advanced Series Panel

Features



  • Adopts core of SS2 series PLC with program of SK steps and D devices of 5K words

  • Provides 2 sets of 10kHz high speed pulse input

  • 4.1" STN-LCD, Monochrome Display & 192 x 64 pixels

  • Provides 17 function keys & 0-9 numeric keys with user defined function

  • Built-in USB port for program upload/download

  • Built-in 2 sets of RS-485 communication port

  • Supports MODBUS ASCII/RTU modes

  • User-defined boot screen available

  • Built-in real-time clock (RTC)

  • Digital I/O points available (8DI/8DO or 16DI/16DO)


E-Server & E-Remote

E-Server​​

​E-Server is used to transfer the production and history data directly form production site to a PC in the office via Ethernet. Production / Recipi data can be saved in excel file / ODBC server & you can generate this report day, week and month wise automatically.

​

E-Remote

E-Remote is used to view and check the same screen shown on HMI at the production site, and control the manufacturing process via Ethernet.

Temperature Controller

download (5).jfif

DTA
Standard Model

Features

​

  • Sensor type: Thermocouple & RTD

  • 1 Control output: Relay, Current and Voltage pulse output

  • Control mode: On-Off, PID, Manual

  • Support PID auto-tuning

  • 2 alarm with 12 alarm mode

  • Support CT function only (Only DTA7272 model)

  • Support RS485 communication with Modbus ASCII protocol (Optional)

  • Model Size : W48 x H48, W96 x H48, W48 x H96, W72 x H72, W96 x H96


DTC
Modular and Extendable Module

Features



  • Sensor type: Thermocouple, RTD, Linear Voltage/Current input

  • 2 Control output: Relay, Current and Voltage pulse output Linear Voltage output

  • Support Dual loop / Retransmission control output(Heat/Cool)

  • Control mode: On-Off, PID, Manual, Ramp-Shock program

  • Support PID auto-tuning

  • 2 alarm with 12 alarm mode

  • Support RS485 communication with Modbus ASCII/RTU protocol

  • Extendable up to 8 module with master

  • Auto ID setup

DTB_M.jfif

DTB Standard Model
Dual Loop Output Control

Features

​

  • Sensor type: Thermocouple, RTD, Linear Voltage/Current input

  • 2 Control output: Relay, Current and Voltage pulse output Linear Voltage output

  • Support Dual loop control output(Heat/Cool)

  • Control mode: On-Off, PID,Manual, Ramp-Shock program

  • Support PID auto-tuning & Valve control

  • 3 alarm with 13 alarm mode

  • Support CT & Event function

  • Support RS485 communication with Modbus ASCIU/RTU protocol

  • Model Size: W48 x H24, W48 x H48, W48 X H96, W96 x H96

Temperature Controller


DTD
Economical Type Model

Features

​

  • Sensor type: Thermocouple, RTD, Linear Voltage/Current input

  • 1 Control output: Relay, Voltage pulse output

  • Control mode: On-Off, PID, Manual,

  • Ramp Shock program

  • Support PID auto-tuning 1 alarm with 9 alarm mode

  • Model Size : W48 x H48, W48 x H96


DTV
Specially for Valve Control Application

Features



  • Sensor type: Thermocouple, RTD, Linear Voltage/Current input

  • 2 Control output: Relay SPST 230V, 5A

  • Real time Output Percentage display

  • Auto/Manual mode switch by single key

  • Control mode: On-Off, PID,Manual, Ramp Shock program

  • Support PID auto-tuning for valve control

  • 2 alarm with 17 alarm mode

  • Support RS485 communication with Modbus ASCII/RTU protocol

  • Model Size : W48 x H96, W96 x H96


DTE
Multi-Channel Modular & Extendable Model

Features

​

  • Sensor type: Thermocouple, RTD

  • Control output: Relay, Current & Voltage pulse output

  • Control mode: On-Off, PID,Manual, Ramp-Shock program

  • Support PID auto-tuning

  • 2 alarm with 12 alarm mode

  • Portable display/parameter setup Support RS485 communication with

  • Modbus ASCII/RTU protocol

  • Extendable up to 7 DTC2000 module with auto ID

Temperature Controller


CTA
Counter/Timer/Tachometer

Features

​

  • 3-IN-1 Timer/Counter/Tachometer

  • DIP switch for quick setup change.

  • "Reset" & "Lock" key available for convenient use.

  • 12V power supply for internal & external sensor

  • NPN & PNP input signal available.

  • Relay & Transistor basis Output

  • Pre-Scale function displays input concrete function

  • Counting type: 1-step counting, 2-step counting, batch counting, total counting, dual counting. available.

  • 2-line 6 digit LCD display. Decimal point setup Timer Supports UP & down timer mode.

  • Timer runs for max. 699999 hours, Timer supports 12 output modes.

  • Counter supports 11 output modes.

  • Counter Supports UP/DOWN counting. Max speed of the counter: 10 kbps

  • Tachometer Supports 4 output modes. Maximum frequency: 10 kHz..

  • With/Without Rs485 Modbus communication

AC Servo System


ASDC A2 Series
High Speed Communication Type

Features

​​

  • High resolution encoder(20 bit).

  • Built-in High-speed network modules (CAN open, FlexRay).

  • Built-in 64 internal single-axis control position Mode.

  • More powerful internal single-axis control position Mode.

​

Range

  • 0.1kW to 15kW, 10/30 220 V

  • 0.75kW to 15 kW, 30 440 V

asda-b-series-500x500.jfif

ASDC B Series
Professional AC Servo System

Features



  • PI/PDFF control structure

  • S curve profile for smoothing

  • Great Stability at Low Speed

  • Man Machine Interface user friendly

  • Modbus communication control

  • Speed/ Torque limit operation Position/ Speed/ Torque mode and dual mode

​

Application

  • Inserters

  • Belt driven machines

  • Unloading robot

  • SMT machine & Food machine

  • Conveyor Robots

  • General Automation Machines

​

Range

  • 0.1kW to 2kW, 10/30 220 V


ASDC B2 Series
Professional AC Servo System

Features

​

  • High resolution encoder (17 bit)

  • Implements High Precision Positioning Control

  • Satisfies a Variety of Demands in the Industry

  • Offers Easy-to-Install Solution for simple Start-Up

  • Fulfills Easy-to-Use Requirements for Versatile Operation

​

Application

  • Transportation Machine

  • Electro-discharge Machine

  • Cutting Machine

  • Sawing Machine

​

Range

  • 0.1kW to 3kW, 10/30 200 V

Head Office :shop No 15, S.no.26/6b, Yashgangaa Residency, Near Abhiruchi Paranjape Parisar, Dhayari, Pune-411041

b2stechsol@gmail.com

+91 8484062327, +91 7840986572

  • Gmail_29991 (1)
  • Whatsapp
  • Whatsapp
bottom of page
